Convert faces, polygon and polyface mesh to solid in AutoCAD

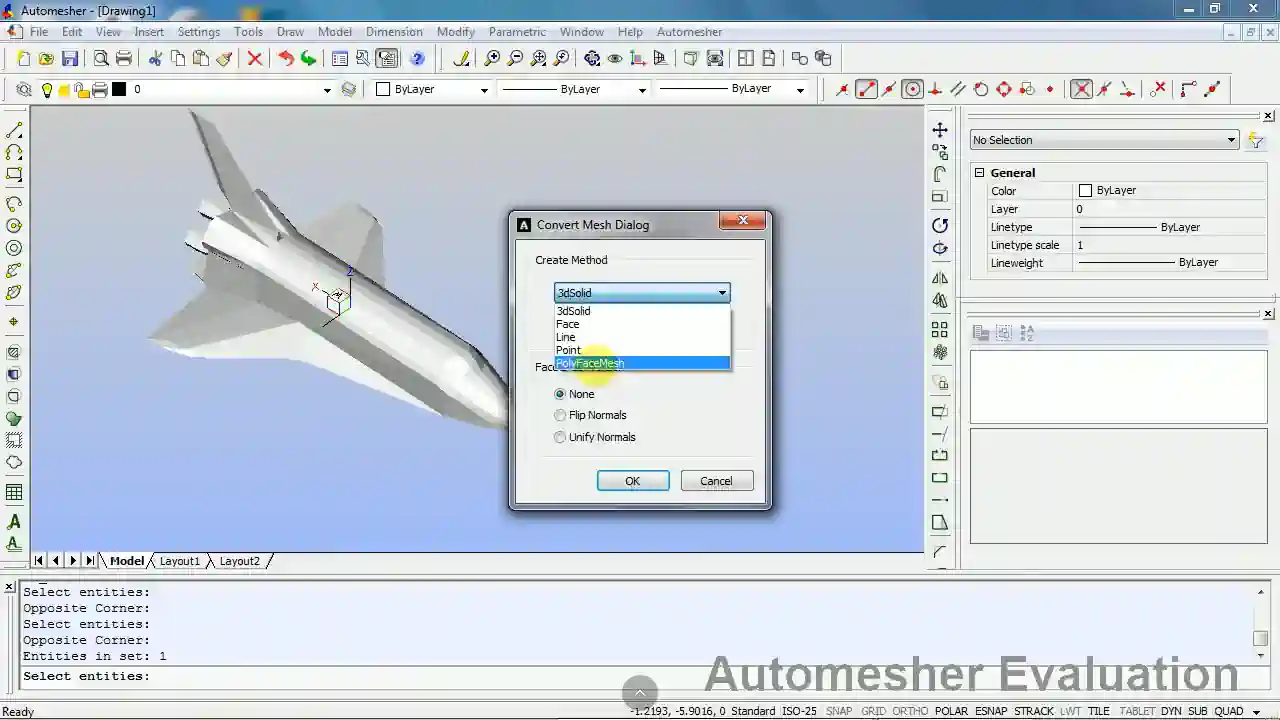

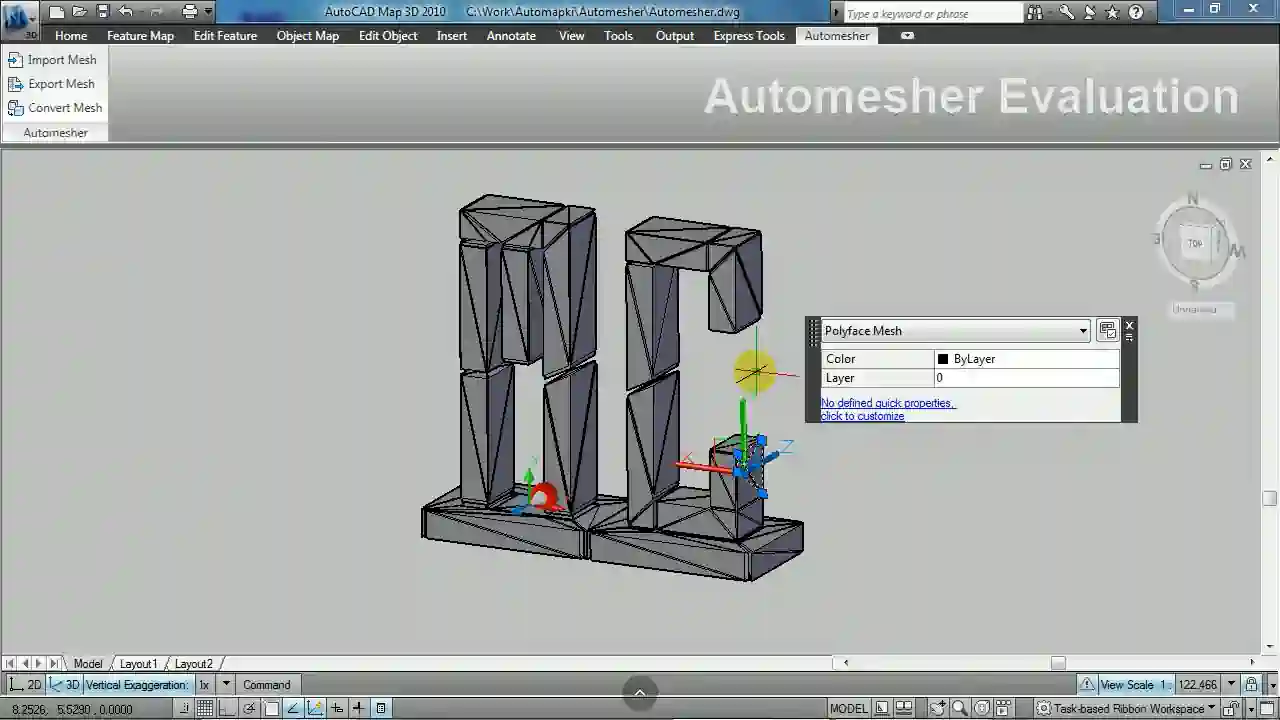

Automesher application is a plugin for AutoCAD / ZWCAD / BricsCAD which adds a functionality to convert a polyface mesh, polygon mesh or a set of 3D faces into a true 3D solid entity type. This unique Automesher feature to convert mesh to solid enables standard solid editing commands and boolean operations to union, subtract or intersect for polyface and polygon meshes.

It is possible that for some complex solids and high values of FACETRES system variable which controls the meshing precision, the number of mesh facets and vertices exceed polyface mesh limit equals to 32,767. In that case Automesher creates several polyface meshes that connect smoothly and close the entire solid body. That polyface mesh group can be of course converted back into a standard 3D solid using commands provided by Automesher add-on product.


Update: Recently we made an effort to improve our Automesher plugin with functionality to convert polyface into a polygon mesh entity. This allows Automesher to recreate a polygon mesh from any triangular data ie. 3D drawing entity or external 3D file format.
