Mass properties for meshed objects

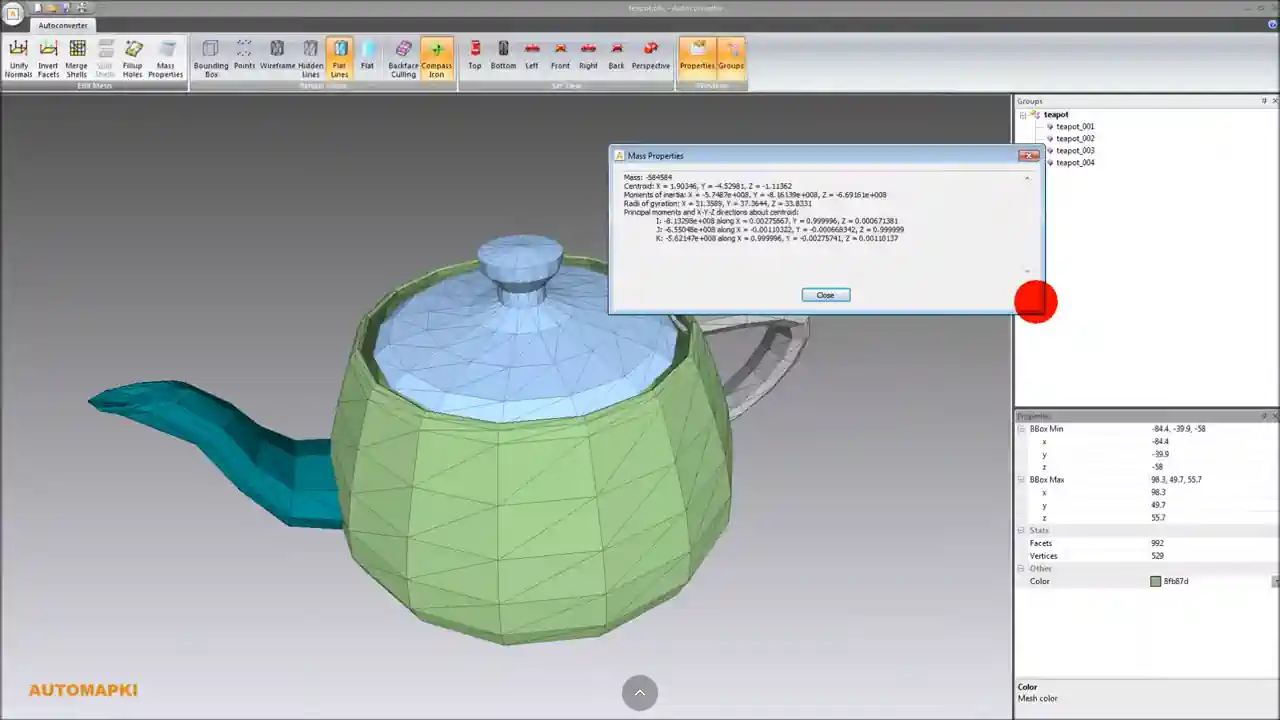

How to consult mass properties for meshed objects step by step tutorial:
- Start Autoconverter program on your system.
- Import and load your meshed object from any supported file format.
- From the groups view select your input sub-mesh or the whole structure.
- Click on Mass Properties button from the Edit Mesh ribbon group.
- Mass, centroid, moments of inertia, radii of gyration are printed in the dialog box.
