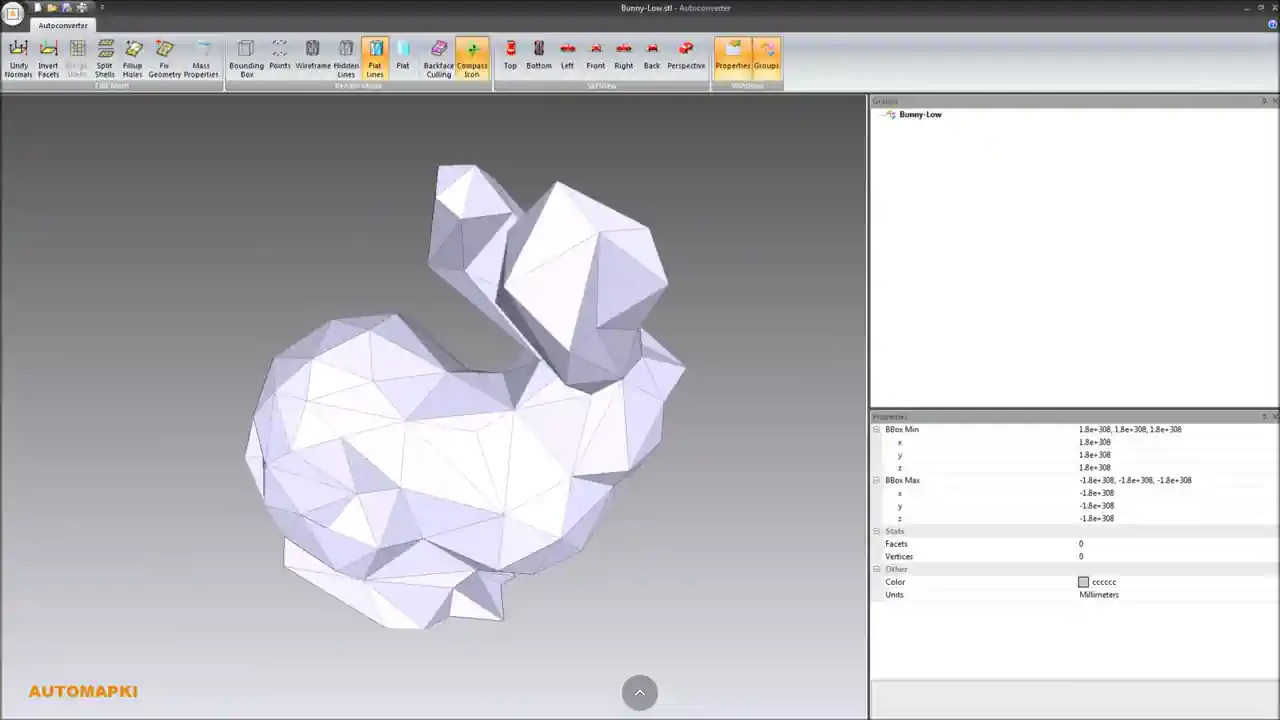

Convert STL mesh file to solid model

  1. To convert STL mesh file into solid download & install Autoshaper software.
  2. Start STL file converter from the new Windows menu shortcut.
  3. Click on the Open button and navigate to your STL file location.
  4. Define required limit surface quality for automatic solid conversion.
  5. Press OK button to convert your STL file into solid shape.
  6. Save the new solid model as STEP or 3DM nurbs file format.
  7. The evaluation version of STL to solid converter allows for 10 conversions only.
